VICELOADER
AUTOMATION
MAGAZINE
Viceloader Automation Magazine Composition
magazine composition
Level outfitting
Level
Spacer element
Outfitting of the level for pallets or vices depends on the type of your zero point. The number of positions in a level depends on the size of pallets and vice.
Each level can be equipped for a different zero point type and different size of pallets or vice.
Each rotary magazine level of Viceloader has an identical design upon which the level outfitting is installed.
In case of a multi-level magazine, the spacer elements are used on the column between the levels.
Magazine column
The column with the motor ensures the magazine rotation in the pre-set cycle. Individual equipped levels are mounted to the column. The magazine can be fitted with a maximum of 5 levels.
The Viceloader automation system is delivered with one level fitted depending on your zero point. Further levels are optional.
mgazine level outfitting
Magazine level outfitting
All the automation elements are clamped using clamping pins of various shapes and sizes. The design for the location of automation elements into the equipped level of the rotary magazine made use right of the clamping pins.
The level is made according to the customer's zero point system and the pallet sizes.
Example of pallet seating into the equipped level.
The same principle also applies in the version for vices.
The magazine level is fitted with holes to accommodate the clamping elements. The holes are equipped with sleeves made of resistant and high-quality plastic. The plastic sleeves protect the clamping pins as well as the seating surfaces of the clamping elements.
levels
Typically magazine level outfitting
Positions for level:
► Level Outfitting for 18 Positions
► Level Outfitting for 15 Positions
► Level Outfitting for 10 Positions
► Level Outfitting for 8 Positions
► Level Outfitting for 6 Positions
► Level Outfitting for 4 Positions
18 positions
Level Outfitting for 18 Positions
Level for:
► Viceloader pallet 125 x 200 mm
18 positions per level
up to90 positions/zmagazine
15 positions

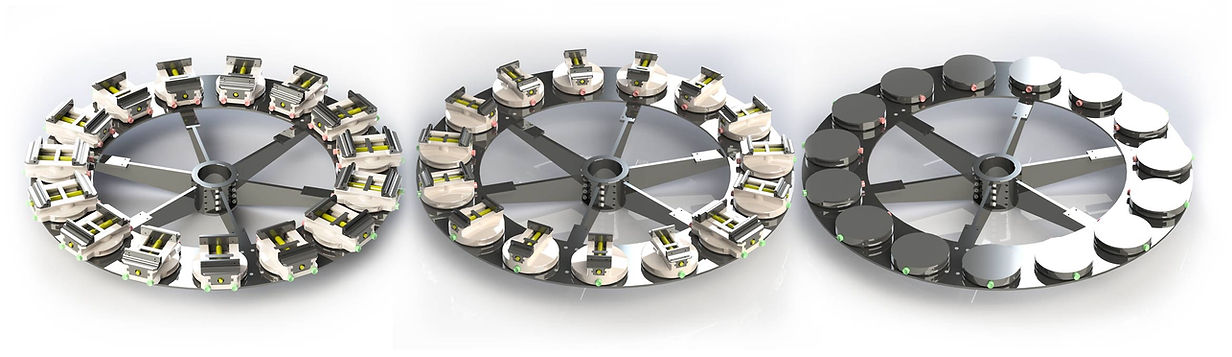

Level Outfitting Compatible with Lang Technik Products
Viceloader is convenient for Lang Technik products = 1 level compatible with vices and pallets
Level for:
► automation carrier plate Ø 178 mm
► automation vice Makro•Grip 125
► automation vice Makro•Grip 77
15 positions per level
up to 75 positions/magazine
10 positions
Level Outfitting for 10 Positions
10 positions per level
up to 50 positions/magazine
Level for:
► Viceloader pallet 200 x 300 mm
8 positions
Level Outfitting for 8 Positions
8 positions per level
up to 40 positions/magazine
Level for:
► Viceloader pallet 200 x 400 mm
6 positions
Level Outfitting for 6 Positions
6 positions per level
up to 30 positions/magazine
Level for:
► Viceloader pallet 300 x 300 mm
Level Outfitting for 6 Positions
6 positions per level
up to 30 positions/magazine
Level for:
► Viceloader pallet 300 x 400 mm
4 positions
Level Outfitting for 4 Positions
4 pozice na patro
up to 20 positions/magazine
Level for:
► Viceloader pallet 400 x 400 mm
pallets

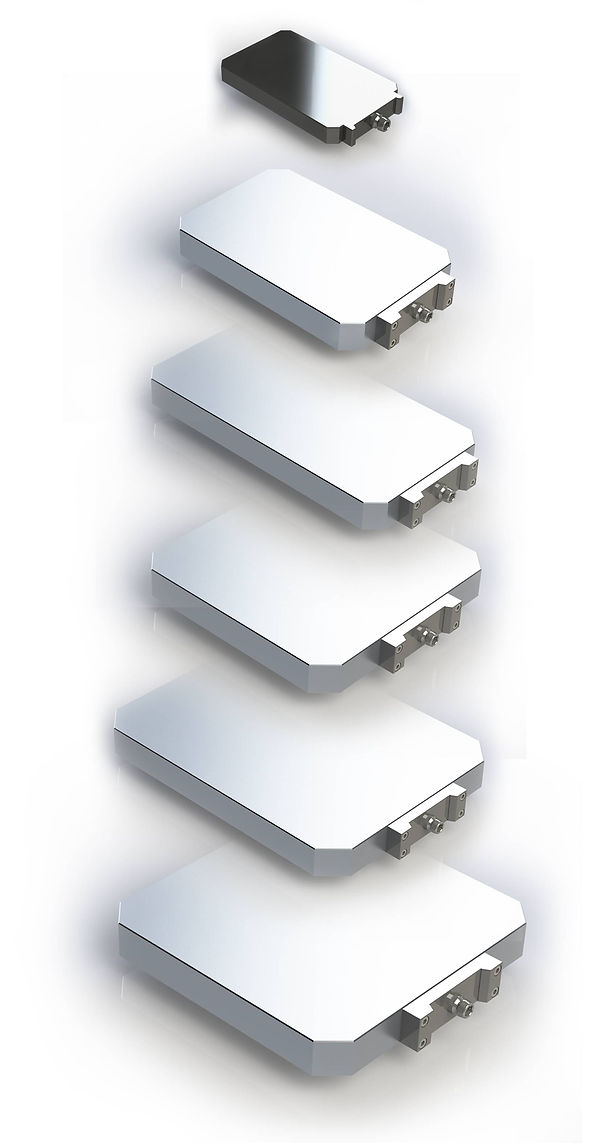

Viceloader pallets
We also offer automation pallets for the magazine floor. Here you can find standard types by size. The holes for fastening your vices or clamps are drilled into automation pallets. This drill is carried out by the customer himself, or we can arrange it according to the customer's wishes. (pallets may have multiple holes for different size of vices)
Pallets are avaible standard in two variants, steel or aluminium.
Standard types of pallets:
125 x 200
Viceloader pallet 125 x 200
(with integrated interface NSR100)
Viceloader pallet 200 x 300
Viceloader pallet 200 x 400
Viceloader pallet 300 x 300
Viceloader pallet 300 x 400
Viceloader pallet 400 x 400
200 x 300
200 x 400
300 x 300
300 x 400
400 x 400
Next possible types of pallets are individual on request.
For more informations leave us the message please.
We will answer as soon as possible.
Viceloader team.
